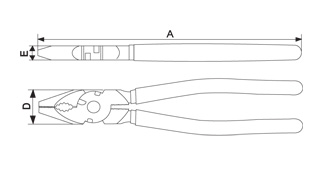

Combination Pliers

The Pliers made from high grade Steel, forged and differentially heat treated to give best performance. Fully insulated with quality plastic material sleeves ensures safe electrical working.

It has excellent wire cutting ability for soft and hard wires. Available with fully polished head or Black phosphated and bright polished head.

PROD. NO	A	B	C	D	L	WT. GMS
1621-6	165	33	12	23.0	10.5	185
1621-7	185	33	12	23.0	11.5	240
1621-8	210	39	16	27.5	12.0	325
1611-6	165	35	13	25	10.0	170
1611-7	185	38	15	27	10.5	220
1611-8	200	40	17	30	12.0	285
1601-6	165	35	13	25	10.0	190
1601-7	185	38	15	27	10.5	220
1601-8	200	40	15	28	12.0	310
MCP-10	255	-	-	40	15.0	540
MCP-12	300	-	-	35	15.0	620

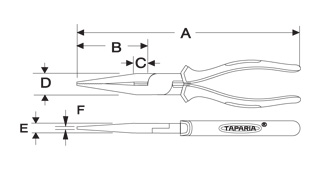

Long Nose Pliers

Features accurately machined and heat treated jaws. Holds very thin wires and cuts fine wires with ease.

PROD.NO	A	B	C	D	E	F	WT.GMS.
Flat Nose 1421-6	165	50	12.0	16	9	5.0	135
Long Nose 1430-6	170	50	12.0	16	9	2.0	135
Round Nose Plier 1431-6	165	50	-	16	9	2.5	130
Long Nose(Econ) 1420-6	165	50	12.0	15.5	9	2.5	145
Long Nose(Econ) 1420-8	215	75	13.5	17	9	2.5	180
LN 11(Econ)	280	80	12.5	16.5	10	2.5	315

Bent Nose Pliers (Econ)

PROD. NO.	A	D	E	F	WT.GMS
BN 06(Econ)	170	16	9	20	145
BN 08(Econ)	200	17	9	30	185
BN-11(Econ)	270	17.5	10	32	310

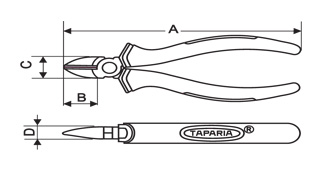

Side Cutting Pliers

Diagonal cutting edges, precision matched to optimum angle ensure long life for cutting hard and soft wires.

Cutting edges are sharp and precision machined to appropriate angle to cut thick and thin wires neatly with ease.

PROD. NO	A	B	C	D	WT.GMS
1121-6	165	21	18.5	10.5	165

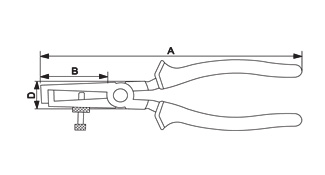

Stripper 1122-6	165	21	18.5	10.5	165
1101-6(Econ)	165	21	20.0	10.0	165
1101-8(Econ)	205	27	23.0	11.5	275
HSC - 7	190	25	25.0	12.5	280

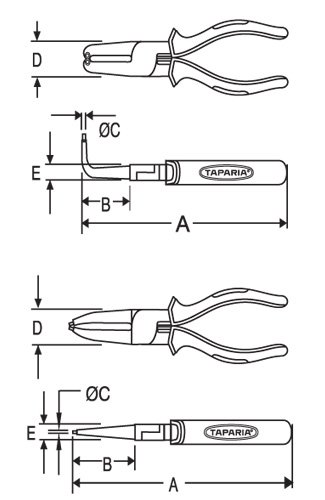

Circlip Pliers

Insulated with thick C.A. Sleeve :-

PROD. NO	A	B	Ø C	D	E	WT. GMS
Straight 1441-7	195	35	1.50	23	10	220
Bent 1442-7	180	24	1.50	23	10	220
Straight 1443-7	195	36	1.50	24	10	210
Bent 1444-7	180	25	1.50	24	10	210
Straight 1441-7/C	195	35	10	1.50	23	220
Bent 1442-7/C	180	24	10	1.50	23	220
Straight 1443-7/C	195	36	10	1.50	24	210
Bent 1444-7/C	180	25	10	1.50	24	210

P.V.C Dip Coated sleeve :-

PROD. NO	A	B	Ø C	D	E	WT. GMS
Straight 1441-5S	130	26	1.0	13.5	8.0	80
Bent 1442-5S	120	18	1.0	13.5	8.0	80
Straight 1443-5S	125	26	1.0	13.0	8.0	80
Bent 1444-5S	120	18	1.0	13.0	8.0	80
Straight 1441-7S	180	42	1.8	18.0	9.0	140
Bent 1442-7S	165	32	1.8	18.0	9.0	125
Straight 1443-7S	180	42	1.8	16.0	10.0	145
Bent 1444-7S	165	32	1.8	16.0	10.0	150
Straight 1441-9S	230	52	2.3	22.0	12.0	305
Bent 1442-9S	220	40	2.3	22.0	12.0	305
Straight 1443-9S	230	52	2.3	20.0	12.0	325
Bent 1444-9S	220	40	2.3	20.0	12.0	315
Straight 1441-13	320	70	3.0	32.0	12.0	410
Bent 1442-13	300	52	3.0	32.0	12.0	410
Straight 1443-13	320	70	3.0	20.0	14.0	530
Bent 1444-13	300	52	3.0	20.0	14.0	530

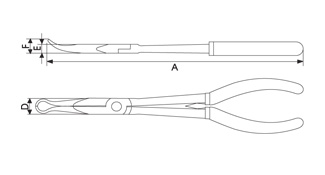

Circle Nose Pliers (Econ)

PROD. NO DESCRIPTION SIZE

LC 13 N 11(Econ) Circle Nose 275

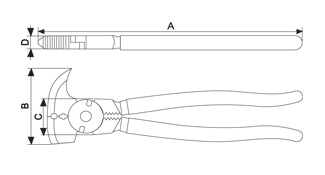

Grove type locking design to provide strength and wear resistance. Diamond profile formed with combination of flat and serrations enables holding both round as well as flat surfaces firmly. Jaws design enables use in any position and in confirmed spaces.

PROD.NO A B C D WT.GMS

1541 -8 200 23 49 19 350

ECN-06 160 8 30 24 180

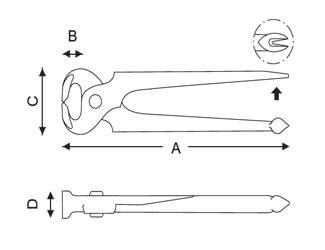

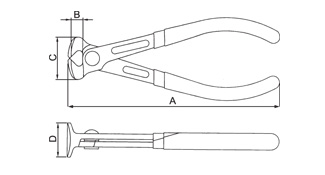

Tower Pincers

PROD.NO A B C D WT.GMS

TP-9 225 18 30 20 360

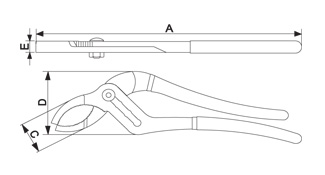

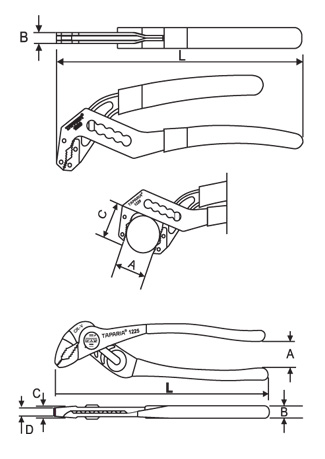

Water Pump Pliers

Made out of high quality Steel, forged and accurately machined to hold circlips from 12 mm to 60 mm. Correctly shaped jaws grips circlips without the danger of flying out. Available in straight and bent version.

PROD.NO	MAX. OPENING	A	C	L	WT. GMS.
1220	Ø 35	35	8	200	180
1223	Ø 35	35	10	200	250
1225/1225N	Ø 45	45	13	250	400
1226	Ø 60	60	11	310	620

Vice Grip Pliers

Product No.	A	B	C	D	G	WT. GMS
1641-5 (Curved Jaw)	125	30	44	9	5	160
1641-7 (Curved Jaw)	175	40	56	12	6	360
1641-10 (Curved Jaw)	250	45	65	12	6	540
1641-N (Curved Jaw)	230	45	67	14	8	530
1642 (Straight Jaw)	250	-	65	12	-	520
1642-N (Straight Jaw)	230	45	70	18	12	520
1643 (Curved Jaw)	230	42	68	12	7	490
1644-9 (Long Nose Jaw)	216	68	56	12	12	375
1645-11 (Clamps With Swivel Pads)	275	100	140	27	-	800
