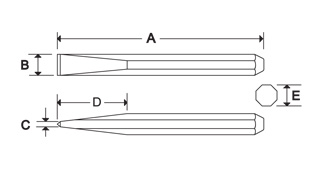

Octagonal Chisels

•

  PROD. NO.	A	B	C	D	E	WT. GMS
  101	135	9	1.50	40	9 A/F	58
  102	150	16	3.25	70	12 A/F	134
  104	200	22	3.75	90	16 A/F	320
  105	200	25	4.00	100	19 A/F	365
  106	250	30	4.50	120	22 A/F	710
  107	300	32	4.75	130	22 A/F	904

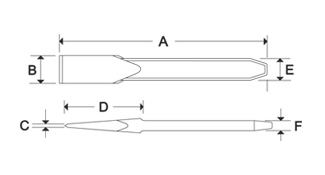

Flat Chisels

Drop forged from high grade carbon steel.Hardened & tempered to ensure best combination of hardness & toughness.

Hardness : 55 - 57 HRC on cutting edge. 35 - 45 HRC on striking portion.

The body is rounded for comfortable grip. Cutting edges are ground accurately to appropriate angle for metal cutting. Available in 150.0 mm, 200.0 mm,235.0 mm. .

• View Details


  PROD. NO.	A	B	C	D	E	F	WT. GMS
  1046	150	20	3.0	57	17	10.00	171
  1048	200	25	3.5	83	21	11.00	310
  1059	235	24	2.5	90	24	6.35	268

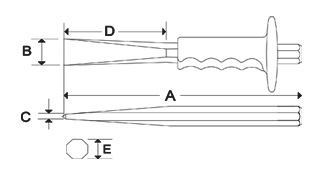

Chisels with Rubber Grip

•

  PROD. NO.	A	B	C	D	E	F	WT. GMS
  106 R	250	30	4.5	120	22	--	820
  1059 R	235	24	2.5	90	24	6.35	350

Pneumatic Chisels

•

  PROD. NO.	A	B	C	ΘD	E	F	G. A/F	H. A/F	WT. GMS
  1306	150	22	3.0	17.25	65	46.5	14.8	19	254
  1307	175	22	3.0	17.25	65	46.5	14.8	19	302
  1308	200	22	3.0	17.25	65	46.5	14.8	19	320
  1309	225	22	3.0	17.25	65	46.5	14.8	19	430
