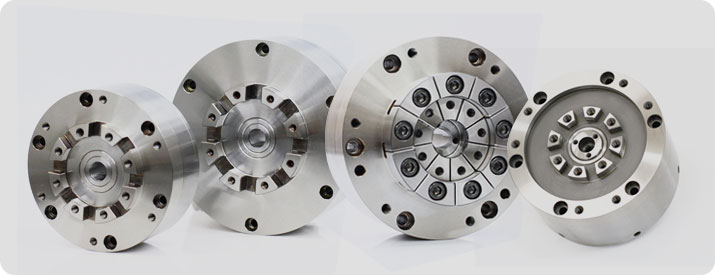

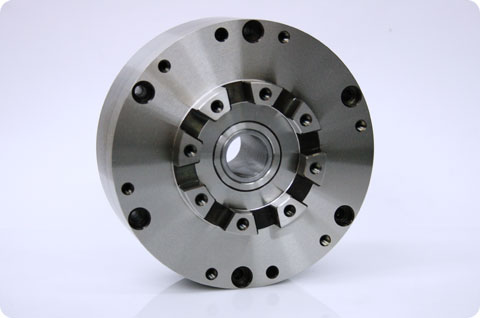

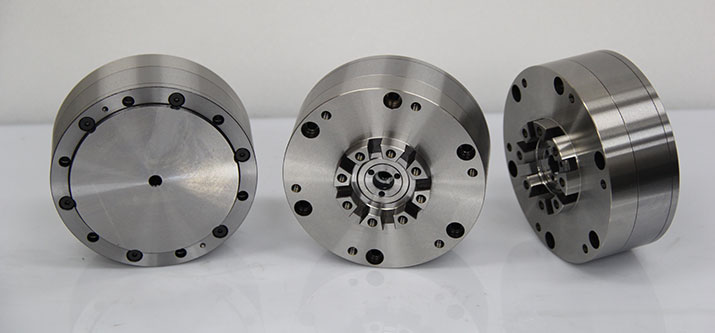

Diaphragm Chuck Super High Precision

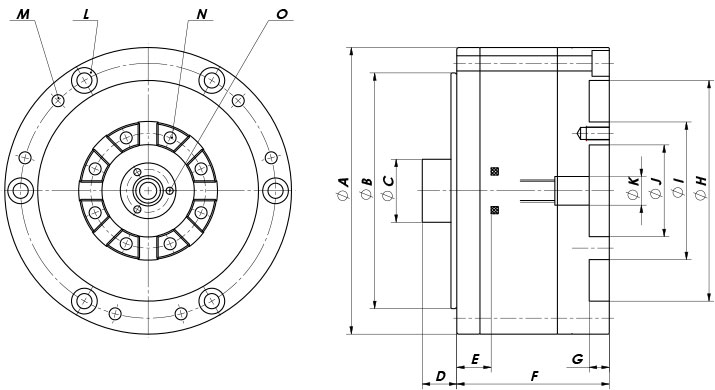

Mechanical parameters in MM

I	G	F	E	D	C	B	A	No. Splits	Model
38	5	45	7.2	17	21	50.8	80	6/8	DC3B
38	5	42	-	-	-	50.8	80	6/8	DC3B-Q
62	8	47.2	7.2	14.5	22	82.55	101	6/8	DC4
62	8	50	7.2	14.5	22	82.55	101	6/8	DC4B
62	8	50	-	-	-	82.55	101	6/8	DC4B-Q
48	6	53	7.5	17	21	82.55	100	6/8	DC4R
48	6	53	8	17	23	82.55	100	6/8	DC4BR
62	8	47.2	-	-	-	82.55	101	6/8	DC4TH12

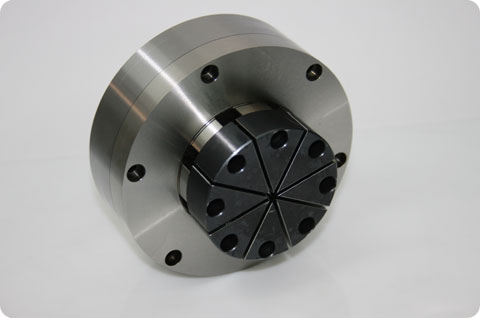

70	-	42	9.2	12.5	22	101.6	127	6/8	DC5
75	9	59	-	-	-	101.6	127	6/8	DC5BTH26
80	10	51.5	8.5	13.2	22	125	150	6/8	DC6
80	10	53	8.5	13.2	22	125	150	6/8	DC6B
80	8	53	-	-	-	125	150	6/8	DC6B-Q
80	8	61	8.5	13.2	22	125	150	6/8	DC6BR

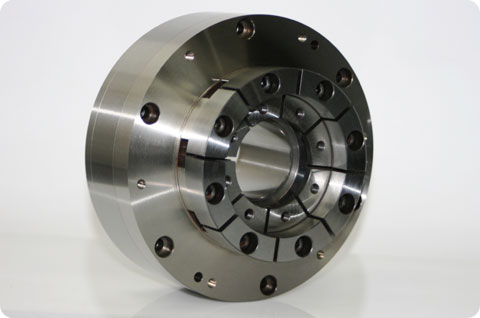

80	10	51.5	-	-	-	125	150	6/8	DC6TH40

Mechanical parameters in MM

Weight (kg)	O	N (P.C.D.)	N	M	L,M (P.C.D.)	K	J	No. Splits	Model
1.3	-	31.5	M4-8	-	70	7	25	6/8	DC3B
1.25	-	31.5	M4-8	-	70	7	25	6/8	DC3B-Q
2	M3-3	52	M5-8	M5-6	88.9	10	44	6/8	DC4
2.3	M3-3	52	M5-8	M5-6	88.9	10	44	6/8	DC4B
2	M3-3	52	M5-8	M5-6	88.9	10	44	6/8	DC4B-Q
2.3	M3-3	40	M5-8	M5-6	88.9	10	32	6/8	DC4R
2.4	M3-3	40	M5-8	M5-6	88.9	10	32	6/8	DC4BR
2	-	52	M5-8	M5-6	88.9	12	44	6/8	DC4TH12
3.5	M3-3	60	M5-8	-	114.3	10.5	50	6/8	DC5
4.3	-	65	M5-8	-	114.3	26	55	6/8	DC5BTH26
5.2	M3-3	70	M6-8	M5-10	135.89	10.5	60	6/8	DC6
5.5	M3-3	70	M6-8	M5-6	135.89	10.5	60	6/8	DC6B
5.2	M3-3	70	M6-8	M5-6	135.89	10.5	60	6/8	DC6B-Q
5.8	M3-3	70	M6-8	M5-6	135.89	10.5	60	6/8	DC6BR
5.2	-	70	M6-8	M5-6	135.89	40	60	6/8	DC6TH40

High Precision Diaphragm Chuck Jaws

PML-PAL produces top jaws. In addition, we also custom make or modify them per customer specifications. The jaws can be hardened and ground. Top jaws shape, the dimensions, and the material can be determined by the customer. Below are photos of top jaws, custom made or modified jaws, and inserts.
