High Precision Turning Air Chucks

High Precision Turning Air Chuck

150mm and 100 mm Precision turning air chucks

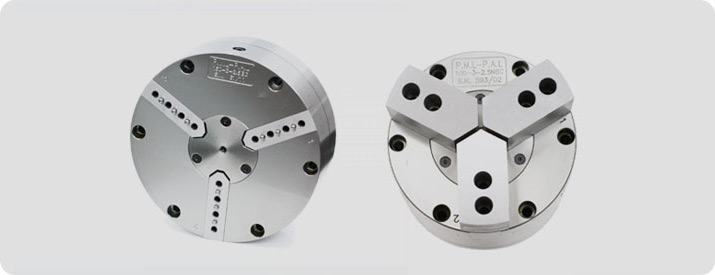

Turning, rotating air chuck

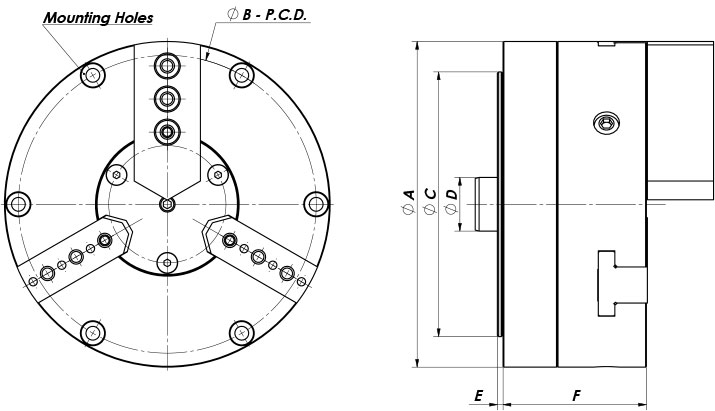

Mechanical parameters in MM

Main Body Model
F E D C B (P.C.D.) A
40 1.8 20.4 32 42.3 51 50-3-2 BC
40 1.8 23 32 42.3 51 50-3-2 NBC
42 2 20.6 50 52 64 64-3-2 BC
50 2 20.6 60 70 82 82-3-2 BC
55 2 20.6 60 70 83 83-3-2.5 NBC
55.7 2.2 21 82.55 88.9 100 100-3-2.5 NBC
55.7 2.2 21 85.55 88.9 100 100-3-2.5 BC
55.2 2.2 25 82.55 88.9 100 100-4-2.5 NBC
55.2 2.2 25 82.55 88.9 100 100-4-2.5 BC
55 2.2 25 93.5 104 115 115-3-3 NBC-K
55 2.2 21 101.6 114.3 125 125-3-2.5 NBC
55 2.2 21 101.6 114.3 125 125-3-2.5 BC
55 2.2 25 125 135.75 150 150-3-2.5 NBC
55 2.2 25 125 135.75 150 150-3-2.5 BC
57 2.2 21 125 135.75 150 150-4-2.5 NBC
57 2.2 21 125 135.75 150 150-4-2.5 BC
60 2.2 21 125 135.75 150 150-3-2.5 NBC-S
60 2.2 21 125 135.75 150 150-3-2.5 BC-S
80.5 6.8 25 167.6 183 203.2 200-3-2.5 NBC
80.5 6.8 25 167.6 183 203.2 200-3-2.5 BC
73.5 7.2 25 215.8 233.7 254 250-3-2.5 NBC
73.5 7.2 25 215.8 233.7 254 250-3-2.5 BC


Technical parameters


 Model
Total Gripping Force (kgf) - 6 Bar Max. R.P.M. (r / min) Stroke On Diameter (MM) No. Of Jaws
86* 6000 2 3 50-3-2 BC
86* 6000 2 3 50-3-2 NBC
83* 4000, 3500 2 2,3 64-3-2 BC
184** 3000 2.5 2, 3 82-3-2 BC
263** 4000, 3500 2.5 2, 3 83-3-2.5 NBC
485** 4000, 3500 2.5 2,3 100-3-2.5 NBC
485** 4000, 3500 2.5 2,3 100-3-2.5 BC
430** 3000 2.5 4 100-4-2.5 NBC
430** 3000 2.5 4 100-4-2.5 BC
780** 4000 3 3 115-3-3 NBC-K
970** 5000 2.5 2, 3 125-3-2.5 NBC
970** 5000 2.5 2, 3 125-3-2.5 BC
1240** 5000 2.5 2, 3 150-3-2.5 NBC
1240** 5000 2.5 2, 3 150-3-2.5 BC
1500** 4000 2.5 4 150-4-2.5 NBC
1500** 4000 2.5 4 150-4-2.5 BC
1770** 5500 2.5 2, 3 150-3-2.5 NBC-S
1770** 5500 2.5 2, 3 150-3-2.5 BC-S
2800*** 2000 2.5 2, 3 200-3-2.5 NBC
2800*** 2000 2.5 2, 3 200-3-2.5 BC
3150*** 2000 2.5 2, 3 250-3-2.5 NBC
3150*** 2000 2.5 2, 3 250-3-2.5 BC


*Calculated with top steel jaws H=16MM
** Calculated with top steel jaws H=25MM
***Calculated with top steel jaws H=50MM

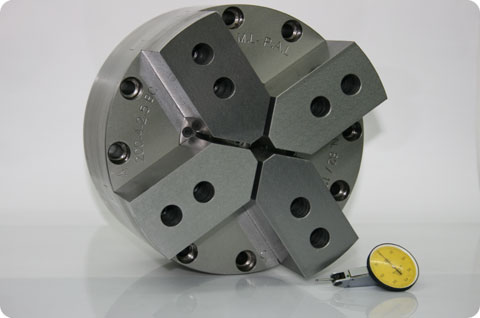

High precision air chuck 200mm 4 jaws
200-4-2.5 BC model, 200MM or 8 inch, 4 jaw high precision air chuck

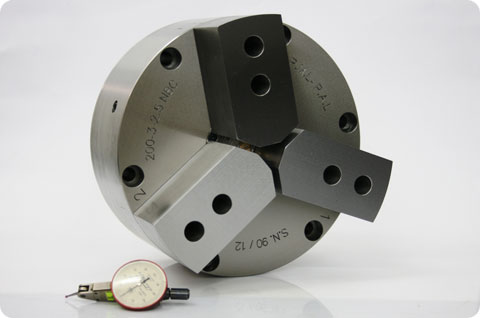

200-3-2.5 NBC High precision turning air chuck

200-3-2.5 NBC model, 200MM or 8 inch, 3 jaw high precision air chuck

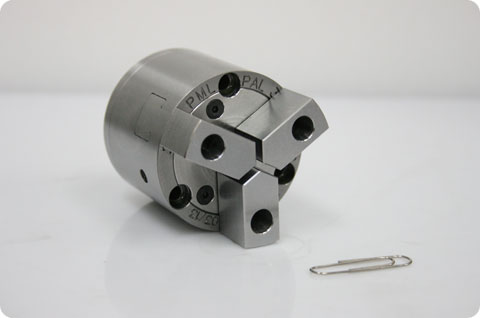

High precision turning air chuck 50mm
